Eligible ECGs884
ECGs With Match0
Matching Beats0
ThresholdNone
Run 20260524-172652-9d0c86e5 · 2026-05-24T17:26:54 · database AppleWatchECG/test_ecg_pdfs
Input ECG Abnormal Beat Check
Abnormal Beat Check
Abnormal beat present
1 de-duplicated abnormal event(s)
NatureShort R-R then long R-R1 threshold-passing pair(s)
Key metricShort 2.12x / long 1.66xvs median NN BPM; short threshold >=1.80x and following long <1.00x
Info
Short R-R Then Long R-RPresent1 threshold-passing pair(s); pause ratio shown
negQRS PACNot detected0 morphology event(s)
R-Peak Quality Passyescompared detected mean HR with Apple average HR when available
R Peaks33after edge trimming
Analysis HR73.0bpm
Average R-R836ms
Min / Max R-R410 / 1170ms
Min / Max BPM Ratio0.70 / 2.00instant BPM / analysis HR
Max Short / Following Long2.12 / 1.66BPM ratios to median NN at max short R-R
Min / Max Instant BPM51.3 / 146.3bpm
Input PDFafter_resistance_-_ECG_2026-05-24_at_13.23.pdf
RecordedRecorded on May 24, 2026 at 1:23 PM
Classificationfibrillation.
WorkoutNone matched
MedicationsNone matched
Template Sequenceshort rr then long pac, 12320 ms center, 11805-12380 ms window
Beat-by-beat R-R CSVCandidate short R-R CSVShort+Long CSVnegQRS PAC CSVInput ECG Summary JSONAuto Template JSON

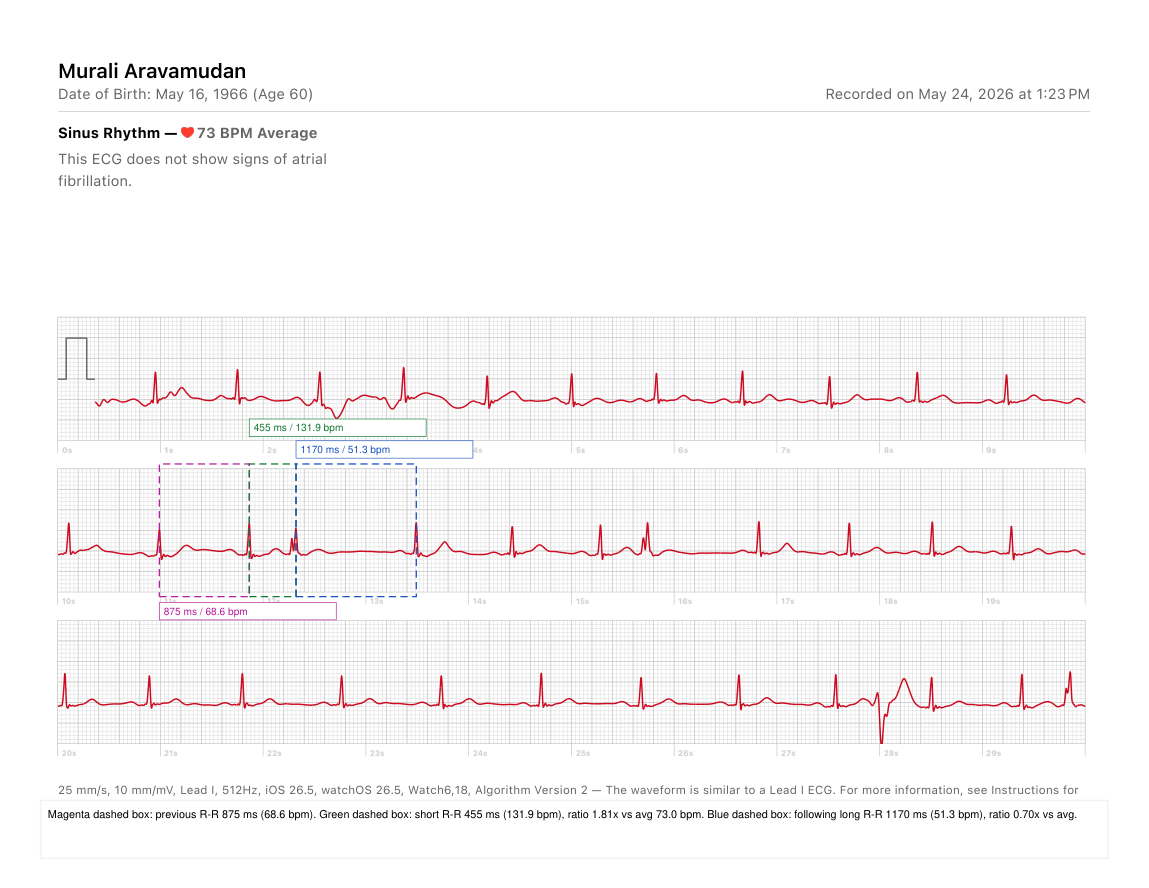

Annotated Short R-R Then Long R-R Beats
Annual Statistics
| Year | Eligible ECGs | ECGs With Match | Matching Beats | % Positive |
|---|
Score Distribution
Scored ECGs0
Mean / Stdn/a / n/a
25th / 75thn/a / n/a
Above Threshold0 (0.0%)
Histogram uses the best template match score found for each eligible ECG PDF.
Report Files
Database Filter CSVInput ECG Beat-by-Beat CSVInput ECG Raw Events CSVInput ECG Short+Long CSVInput ECG negQRS PAC CSVInput ECG Summary JSONAuto Template JSON
